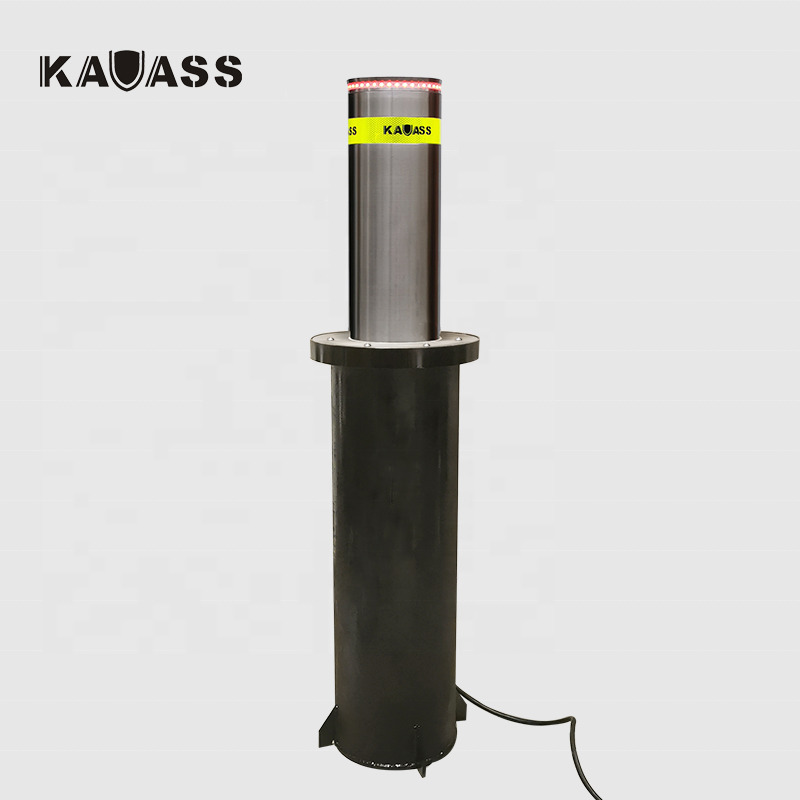

KAVASS-EAHB Series.Electric hydraulici automatic rising bollard is designed to meet the requirement of mid-level perimeter security.Users can meet the needs of perimeter protection with lower cost.KAVASS engineers integrate motor with hydraulic cylinder to reduce the overall manufacturing and maintiance costs while ensuring bollard performace and anti-collision effect.
Model | KVS-EAHB-168.600.5 | KVS-EAHB-220.900.6 | |
Diameter | 168mm | 220mm | |
Height | 600mm | 900mm | |
Weight | 50KG | 70kg | |
Thickness | 5mm | 6mm | |
Material | Carbon Steel/304 Stainless Steel/316 Stainless Steel | 304 Stainless Steel ( can be customized ) | |
Surface Treatment | Powder Coating/Polish &Brush | + PBrush olish | |
Volatge | 220V 50Hz | ||
Rising Speed | 30cm/s | ||
Lower Speed | 20cm/s | ||
IP Level | IP 67 | ||
Working Temperature | -40℃ to 70℃ | ||
Accessory | Remote Control * 2 | ||
Optional | Push Buttom、loop detector、buzzer、heater、traffic light | ||
1) Custom sizes/colours made on requirements.
2) Surface mount or in-ground models.
3) Carbon steel /304SS/316SS optional.
4) High quality Stainless Steel Polished finish/Galvanized + powder coated
5) Low-cost installation and maintenance.
6) Reflective tape
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 25-40 days,it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge and do not pay the cost of freight.But when you take the formal order,the sample fee could return.
Q: What is your terms of payment ?
A: 30% T/T in advance,balance before shippment.
