Stainless Steel 304 Factory Price Security Automatic Electric Rising Retractable Hydraulic Bollard For Access Control

1 Piece
MOQ

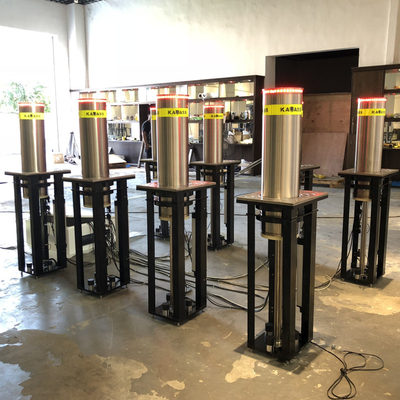

Stainless Steel 304 Factory Price Security Automatic Electric Rising Retractable Hydraulic Bollard For Access Control
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Product Name: Automatic Hydraulic Bollard
Material: 304 Stainless Steel
Diameter: 275mm (10.83'')
Height: 900mm (35.43'')
Thickness: 7mm (0.28'')
Weight: 226kg((498.24 lb)
Surface Treatment: Brushed & Polished
Voltage: 220 Vac 50/60Hz
Impact Resistance: 250.000 J
Breakout Resistance: 750.000 J
Grundinformation
Zahlung und Versand AGB
Packaging Details: wooden case
Supply Ability: 1000 Piece/Pieces per Month
Produkt-Beschreibung
Product Description

KAVASS automatic high security hydraulic bollards intend to prevent vehicles unauthorized access to secured areas and keep high level of anti-terrorism protection. These bollards have many advantages, particularly in installations on locations with severe winter temperatures or when the installation requires a considerable distance between the Bollard and the control unit.

Pls find our other products on
https://kavasstech.en.alibaba.com/?spm=0.edit.0.0.190db4dfGsfz5d

Model
KVS-AHB-275.900.7-4
Material
304 Stainless Steel
Diameter
275mm (10.83'')
Height
900mm (35.43'')
Thickness
7mm (0.28'')
Foundation Depth
1400mm(55.12'')
Weight
226kg((498.24 lb)
Surface Treatment
Brushed & Polished
Reflective Adhesive Strip
50mm(1.97'')
Rising and Lowring Speed
3s to 5s
Voltage
220 Vac 50/60Hz
Impact Resistance
250.000 J
Breakout Resistance
750.000 J
Protection Class
IP67
Resistance Level
K4
Operating Tempereture
-40 °C +70 °C (-104 °F+158 °F)
Warranty
12 months

Main Features

1) Hydraulic control
2) Automatic, Speedy and durable
3) High security and anti-collision ability
Detailed Images

Control Cabinet

1 bollard
400*300*160(mm)
15.74*11.81*6.30(inch)

4 bollard
633*120*730(mm)
24.92*4.72*28.74(inch)

6 bollard
900*120*730(mm)
35.43*4.72*28.74(inch)
Components of Intergrate Hydraulic Bollard
Brand Name
Country
Advantage
Hydraulic Pump
SEA
Italy
Stable Operating and no Leakage
Oil
SEA
Italy
Low Freezing Point
Magnetic valve
ARGO HYTOS
Germany
 Waterproof Grade: IP67
All Hoses of Devices
EATON
American
Durable in Any Circumstance
Cylinder
Body Frame: Solid and BeautifulIntegrated
Packing & Shipping

1.Normally, we offer UPS/DHL/FEEDX/TNT express with door to door service, if the G.W. of goods are are less than 50Kg. You just need to pay some custom clearance charge for receiving the items at your specific address. The shipping date is about 3-5 days to arrive.
2.If G.W. are over 80Kg, we will check if air shipment is more economical than express. Shipping by air you need to go to airport to take items. If you are not very familiar with these works, you may need a broker to help you deal with the custom clearance and goods transportation. The air shipping is about 2-7 days.
3.If you make a large order, we suggest that you ship by sea. We have our own forwarder for the shipment service. Please contact with us without any hesitation if you have large orders.

Our Projects
Certification
Related Products
FAQ

Q: Are you a trading company or a manufacturer ?
A: We are a manufacturer with more than 50 employees. Our factory covers an area of 800m2 and 2 floors.

Q: How long is your delivery time ?
A: Generally, it takes 25-40 days after receipting of the payment. It is also according to the quantity.

Q: Do you provide sample for clients ? Is it free or extra ?
A: Yes! sample is available, and the fee of sample will be return to you after you place formal order.

Q: What is your terms of payment ?
A: 30% T/T in advance, balance before shipment. L/C is priority recommended.

Contact us

KAVASS, a Chinese manufacturer of security products and systems, specially offer bollard, bike rack, pedestrian gate,traffic barrier and tire killer. KAVASS is dedicating the best products to customers for 18 years. In order to ensure the quality, all products are in strict accordance with the standards of production and inspection processes.
“Quality first, reputation highest and the customer up most” is the consistent sole-principle of KAVASS.
KAVASS desires long-term relationships and successful cooperation with all clients around the world.
